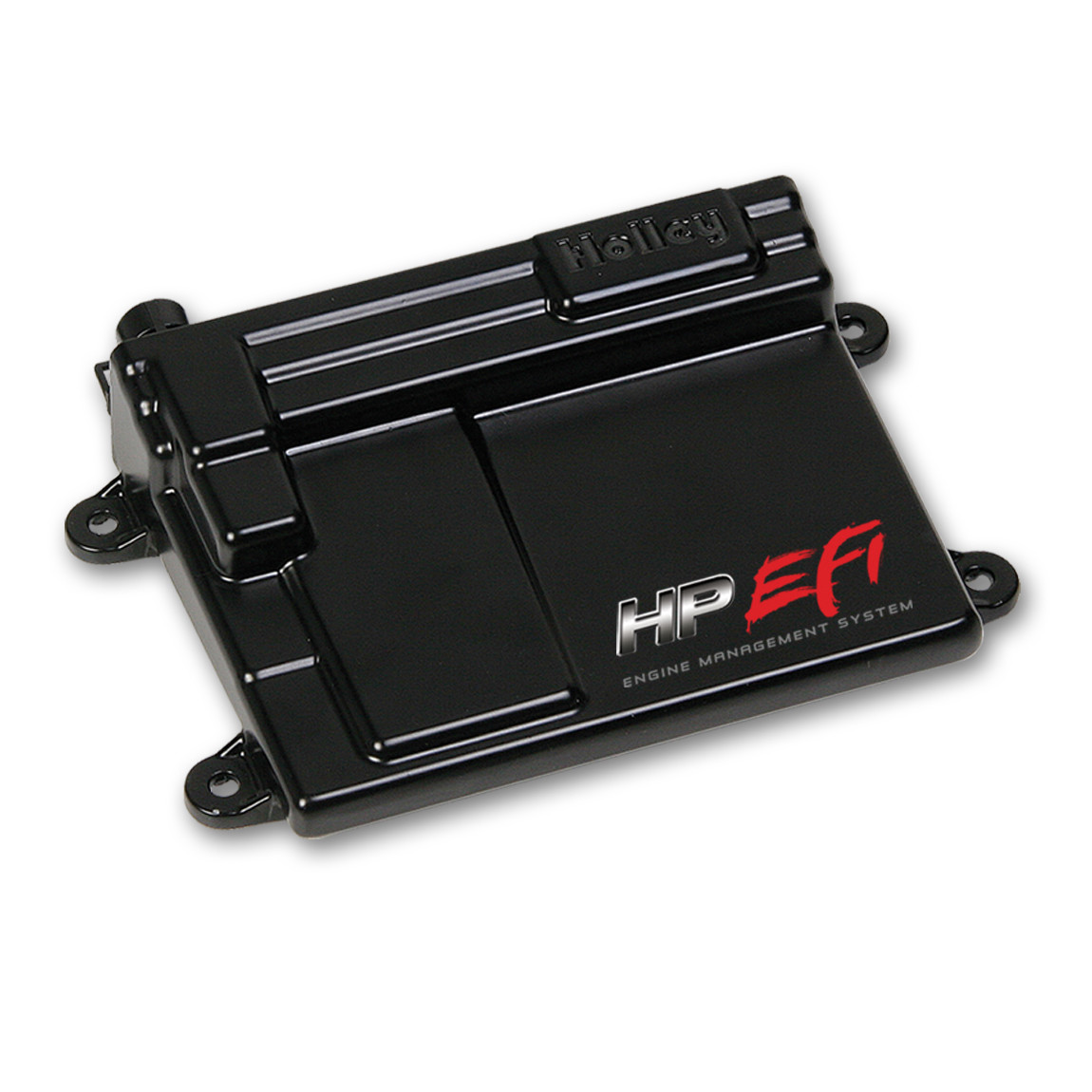

LS2 6.0 Holley HP Computer and Harness 24x Manual Throttle

  • Image 1
6.00 LBS
Calculated at checkout

*Image is a representation of this item. Actual item may vary.

Product Description

The LS2 was introduced as the Corvette's new base engine for the 2005 model year. It also appeared as the standard powerplant for the 2005-2006 GTO. It produces 400 bhp (300 kW)@6000rpm and 400 lb·ft (542 N·m)@4400rpm from a slightly larger displacement of 5,967 cc (5.967 L; 364.1 cu in). It is similar to the high-performance LS6, but with improved torque throughout the rpm range. The LS2 uses the "243" casting heads used on the LS6 (although without the sodium filled valves), a smaller camshaft, and an additional 18 cubic inches. The compression of the LS2 was also raised to 10.9:1 compared to the LS1s 10.25:1 and the LS6s 10.5:1. The LS2s in the E-series HSVs are modified in Australia to produce 412 bhp (307 kW) and 412 lb·ft (559 N·m). The LS2s in the Chevrolet Trailblazer SS and the Saab 9-7X Aero are rated at 395 bhp (295 kW) (2006–2007) or 390 bhp (290 kW) (2008–2009) and 400 lb·ft (542 N·m) of torque due to a different (sometimes referred to as a "truck") intake manifold that produces more torque at lower RPMs


  • ·     Plug and Play control of factory GM 24x and 58x LSx engines
  • ·     Internal data-logging standard with a huge 2GB of memory
  • ·     4 Stage progressive nitrous control
  • ·     Turbo boost control
  • ·     Integrated water/methanol injection control
  • ·     Self-tuning fuel table strategy greatly simplifies tuning process
  • ·     Individual cylinder fuel and spark control allows you to unlock your engine’s potential
  • ·     Works with 4, 6, 8 cylinder engines
  • ·     Unique lb/hr based fueling strategy greatly simplifies and commonizes tuning
  • ·     Advanced idle, closed loop, and enrichment strategies allow for very stable operation
  • ·     ECU is fully potted and can be mounted in the engine compartment or interior
  • ·     Sealed automotive and marine grade connectors
  • ·     Allows for use of common OEM sensors as well as customer sensor calibration input
  • ·     1-5 Bar MAP sensor capability
  • ·     Two channel knock control sensor Inputs for both one or two wire knock sensors
  • ·     Dedicated fuel and oil pressure inputs
  • ·     Controls both stepper and PWM Idle Air Control (IAC) motors
  • ·     Speed density, Alpha-N, or combination fueling strategies
  • ·     4 Programmable high or low Pulse Width Modulated (PWM) outputs and 4 fully configurable inputs can be configured for use
  • ·     4 Stage nitrous oxide control
  • ·     Fully featured nitrous control eliminates the need for a separate nitrous controller device
  • ·     Can be configured “Wet” or “Dry” with closed loop feedback
  • ·     Progressive control based on time, RPM, or boost, requires part # 554-111
  • ·     Lean or rich safety cutoff
  • ·     Full timing retard/control configurability per stage based on RPM or time
  • ·     Integrated Water/Methanol injection control
  • ·     Uses Holley Water/Meth solenoids specially designed and calibrated for use with this EFI system to allow the user to enter Water/Meth flow as a percentage of fuel injector flow for Water/Meth tubing
